11 - 38M/Min Tractor Drawn Winch Transmission Line Walking Overhead Line Stringing Equipment

Name: 11 38MMin Tractor Drawn Winch Transmission Line Walking Overhead Line Stringing Equipment
Brand: Suntech
Price: 1 USD

China 11 - 38M/Min Tractor Drawn Winch Transmission Line Walking Overhead Line Stringing Equipment wholesale

Brand Name : Suntech

Model Number : SX4-V1

Certification : ISO9001

Place of Origin : Ningbo, China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 1000 PCS/Month

Delivery Time : 7-15days

Packaging Details : Wooden Case

Name : Tractor-drawn Winch

Item No. : 08126

Traction force : 20-40KN

Traction speed : 11-38M/Min

Bottom of groove diameter : 300mm

Number of groove : 6

Weight : 1740KG

Outline size : 2900x14000x1440mm

Warranty : 1 year

Contact Now

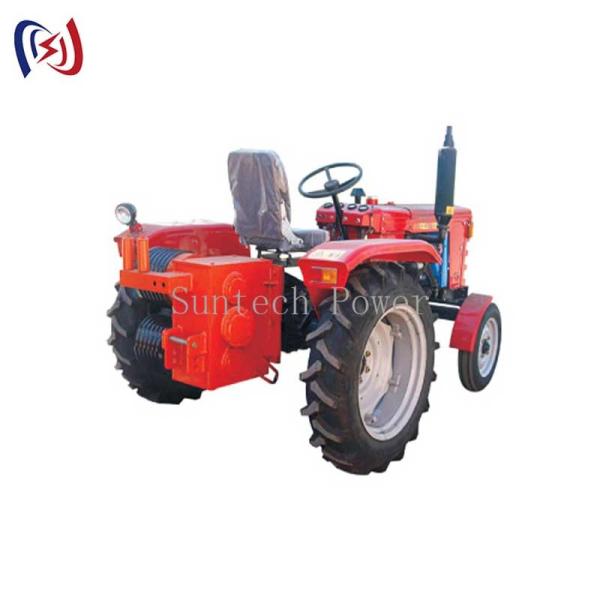

Tractor-drawn Winch Transmission Line Walking Tractor Drawn Winch Machine

Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.

Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.

Application

Fast Speed Double Drum Winch Tractor For Pulling and Lifting During Tower Erection is applicable to pull no-twist wire rope.Suitable for the construction of the tower line,traction line,tight line operation,laying cable.

Features

Four gear,forward gear and reverse gear

Double drum,seven groove,protect the wire rope

speedy and convenient

The grinding of walking tractor is reformed from 12 type walking tractor.

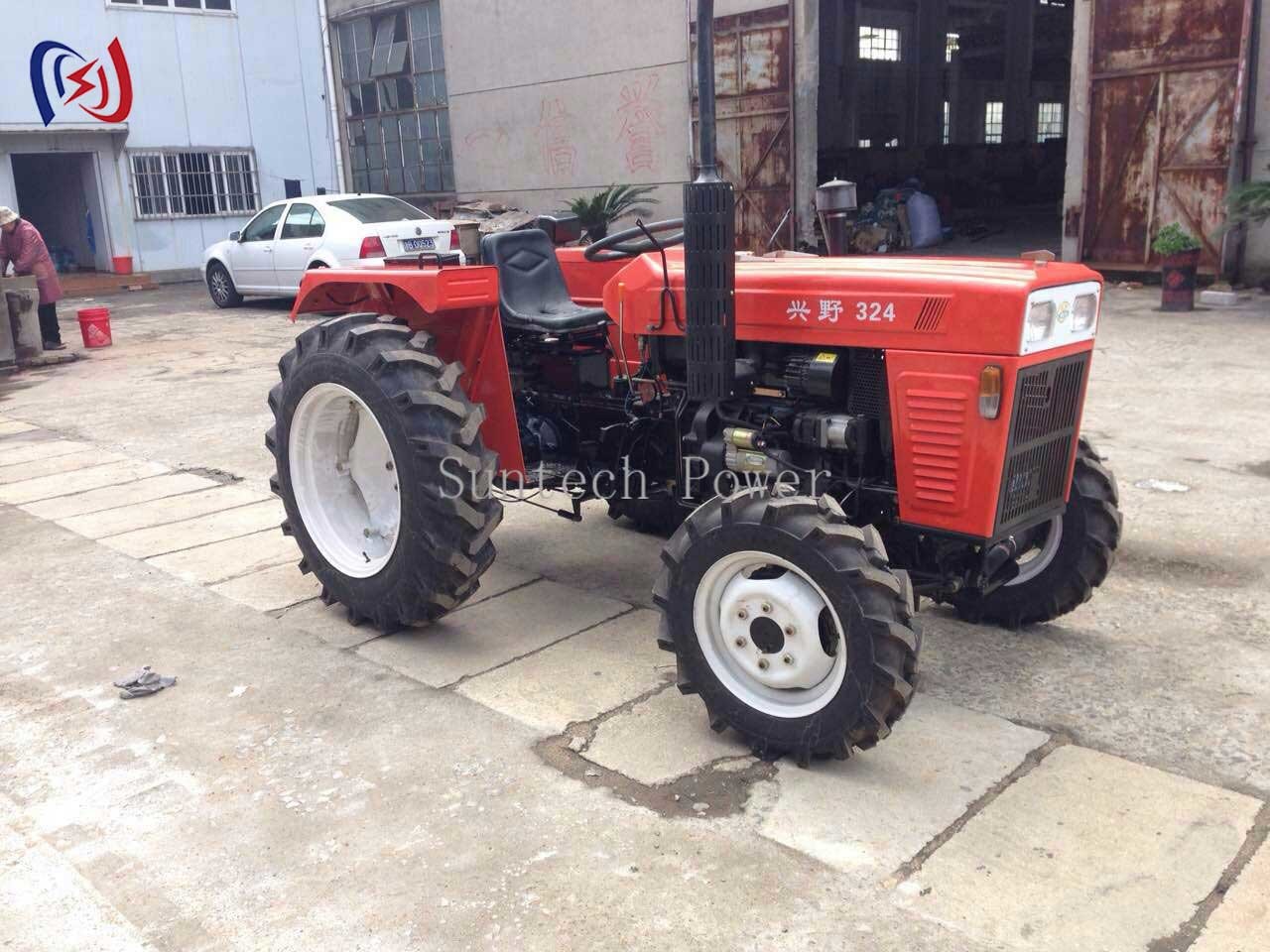

It is made of four-wheel drive 304 type tractors. Can use a two-wheel drive 300 tractor(Item No. 08127)

Specifications:

Item number	08126	Power	22KW	Model		SX4-V1
Gear			Ⅰ	Ⅱ	Ⅲ	reversalⅠ
Traction force(KN)			40	30	20	-
Traction speed(M/MIN)			12	21	38	11
bottom of groove diameter			Φ300mm
Number of groove			6
Weight(KG)			1740kg
outline size			2900x14000x1440mm

11 - 38M/Min Tractor Drawn Winch Transmission Line Walking Overhead Line Stringing Equipment
